I promised some photos of my video harness

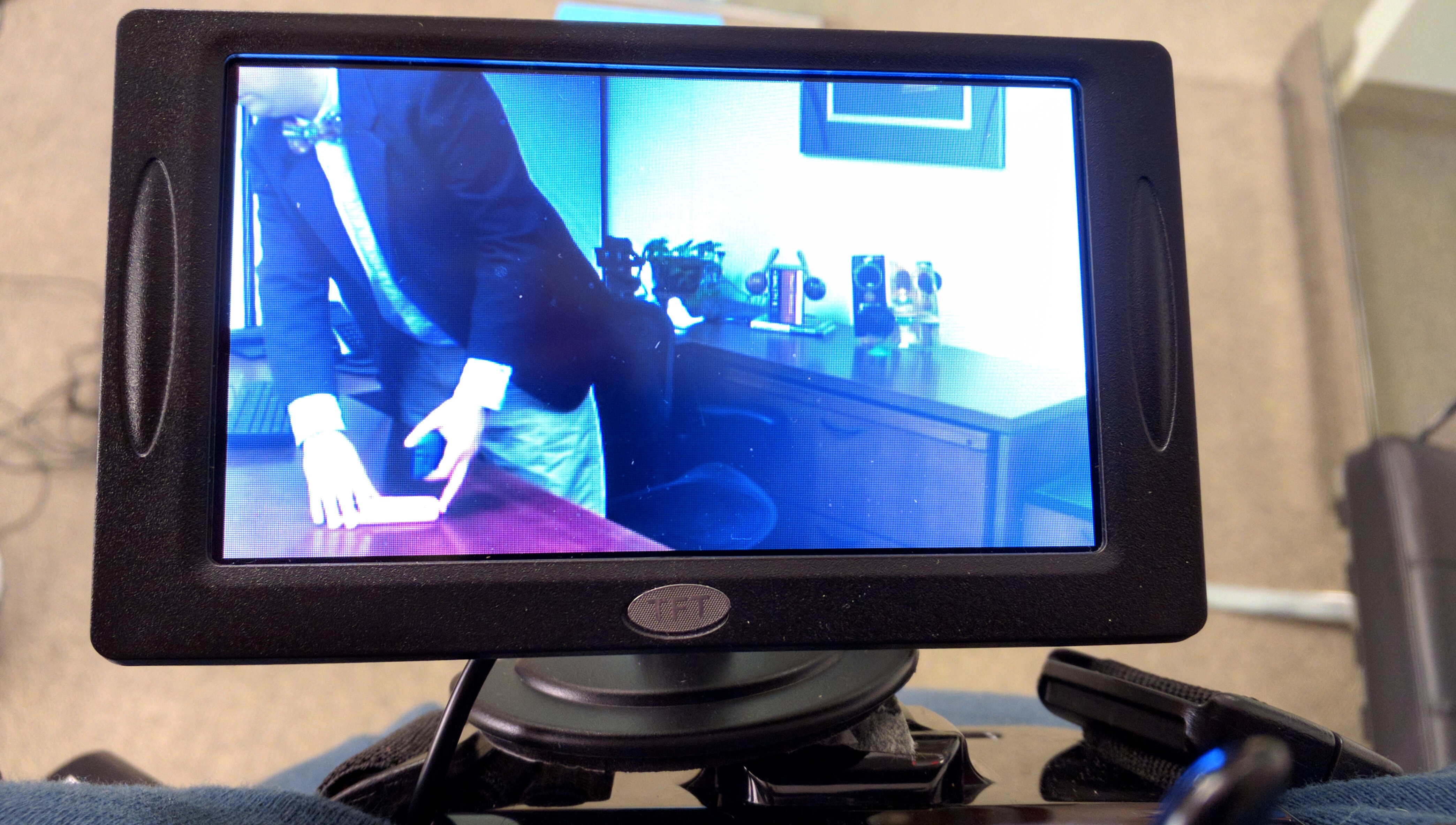

Here’s the video screen attached to my harness while the camera’s filming another one of our characters.

IMG_20160110_191305

Sorry, I don’t have more photos. I’ll try to get some taken next time we film.

(original post: Learning Puppetry tech…)

Learning Puppetry tech…

caroll-spinneyOne of the problems I have when I’m puppeteering Rudy Monster is that I’m stuck underneath his huge furry body and it’s really difficult to see the monitors that Kay and Jen are using to watch their own performances. So I started thinking about how to give myself a small, portable monitor that I could use while I was under Rudy.

I’d read about Caroll Spinney’s “electronic bra” that he wears inside of Big Bird, but that has a fairly large CRT video monitor on it, and I was sure that modern technology could provide me with something much, much better.

VideoGlasses

The video glasses that wouldn’t work…

At first, I tried using a pair of Video Glasses.  I figured that I could just wear these on my face and I would be able to puppeteer with the best of them. Unfortunately, I hadn’t counted on two things, the first logistical, and the second technical. First, with these glasses on, I couldn’t see anything but what the camera was showing me. No script, no other puppeteers, no nothing. I was trapped inside the glasses until I took them off.

Second, and much more importantly, they only worked for ten minutes at a time, and then they conked out. If I let them rest for a half hour or so, they’d work again, but I couldn’t afford to only get 10-20 minutes of use out of every hour; I needed to be able to use these for long puppeteering sessions. So I scrapped the glasses and went back to puppeteering blind.

But, of course, that didn’t work very well, either. I constantly had to get coaching from my coworkers about Rudy’s eye focus, and I had to feel my way through everything. Not the way I like to puppeteer.

Finally, I decided to build my own rig to approximate what Caroll Spinney has.  Looking at the pictures of Caroll’s getup, I started figuring out how I could get the appropriate parts. Of course, trying to get a CRT video monitor these days is nigh-impossible, but I found links to LCD flat-screen monitors that have the same 16:9 aspect ratio (widescreen) that our camera has. These screens were being sold for retrofitting cars that didn’t have backup cameras with aftermarket cameras.

And then I saw a related link for a wireless transmitter that allowed you to transmit video from your camera at the back of your car to your monitor on your dashboard, without wires. This was what I needed.

So I got the following equipment:

First I tested the monitor and the battery. Both had all the connectors they needed, so I was able to take the Y-splitter lead that came with the battery and plug one end into the monitor’s power cable and the other into the power supply that came with the battery. I plugged in the video RCA out from our camera and… voilá! I was watching what the camera was recording on the tiny monitor. At the very least, my getup would work if it was hardwired.

Next, I wanted to get the wireless transmission working. The pieces of the wireless transmitter were meant to be hardwired into a car, so they had bare wires as power leads. I was prepared for this (remember, I bought the package of connectors), but then I had a sudden thought: this was DC power, and unlike AC power, with DC power, polarity matters. With my misadventures in LED wiring still fresh in my mind, I popped off to Google to make sure I had my polarity correct. Finding the Wiring Color Codes reference in the free electrical engineering textbook “Lessons in Electric Circuits“, I read the following (the last sentence was bolded by me):

US DC power: The US National Electrical Code (for both AC and DC) mandates that the grounded neutral conductor of a power system be white or grey. The protective ground must be bare, green or green-yellow striped. Hot (active) wires may be any other colors except these. However, common practice (per local electrical inspectors) is for the first hot (live or active) wire to be black and the second hot to be red. The recommendations in Table below are by Wiles. [JWi] He makes no recommendation for ungrounded power system colors. Usage of the ungrounded system is discouraged for safety. However, red (+) and black (-) follows the coloring of the grounded systems in the table.

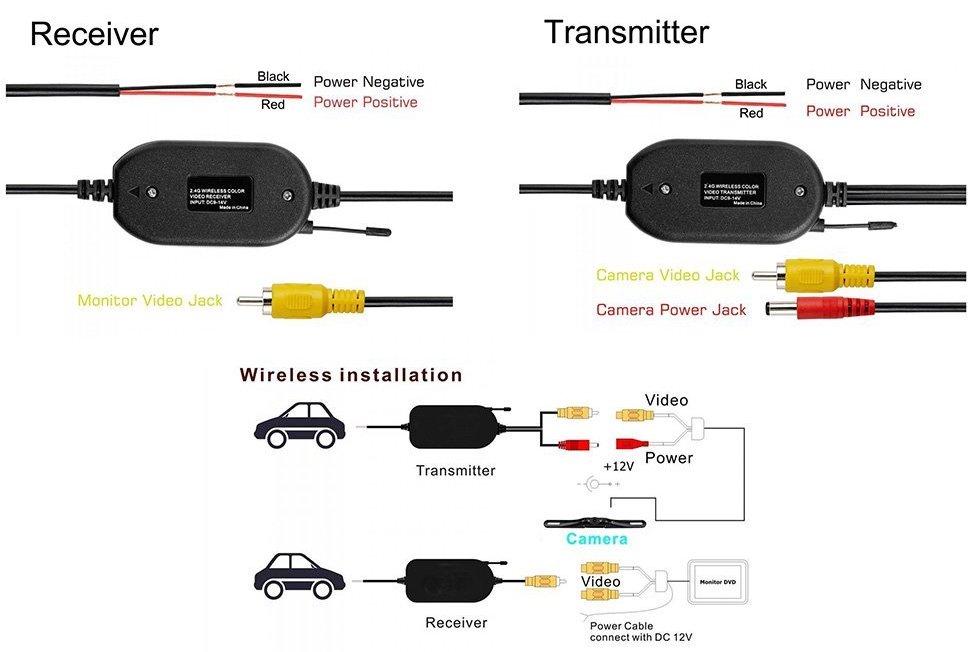

Ok, so these red wires were positive, and the black wires were negative. And… oh, lovely! This wiring diagram for the product even states that! This is what I get for not reading the documentation before diving in…

Documentation? How quaint…

So I hooked up a female DC power connector to the transmitter’s power, making sure the red wire was going into the positive terminal (then screwing it down with a #0 phillips head) and the black wire was going into the negative terminal (screw, screw, screw). Then I plugged the male power plug from the extra power supply I got and saw the little indicator light on the transmitter light up.

So far, so good.

I did the same with a male CD power connector on the receiver’s power, and then plugged it into the the Y-splitter lead that came with the battery.

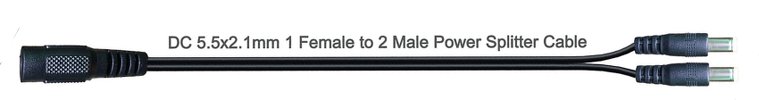

BatteryCord

I picked the male power connector because the battery pack had a female power port, and the monitor had a female power plug.  This meant that the cable above would let me plug in a male plug and not have to wire up anything special.

And when I turned on the battery, the indicator light on the receiver lit up.  So, holding my breath, I plugged in our camera to the transmitter… and… success!

I was so excited, I put on the harness and took the screen upstairs to my wife.

“What’s that?” she asked, indicating the picture on the diminutive screen.

“That’s the sewing machine. Downstairs.”

I’ll post a picture of this rig in action after we film with it this coming Sunday, but I couldn’t wait to post about assembling this setup.  It felt good.

Tiny fingers…


Tiny fingers require very fine stitching.

It’s a royal pain in the ass. 1.5 fingers down, 8.5 to go. *grumble*

I’m not a hardware guy…

Ok, so as some of you already know, PacKay Productions is building puppets for the Glove Theater’s production of Shrek: The Musical (and my lovely wife will be performing the part of Dragon).  Part of Kay’s design for Dragon included eyes that light up, and Kay figured that she could accomplish this by putting a battery-operated LED closet light in each eye:

LED-LIGHT

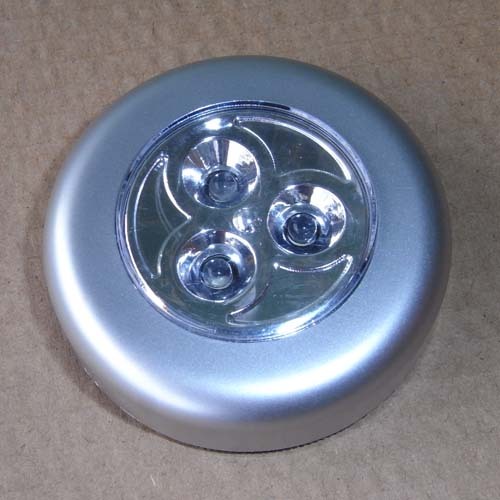

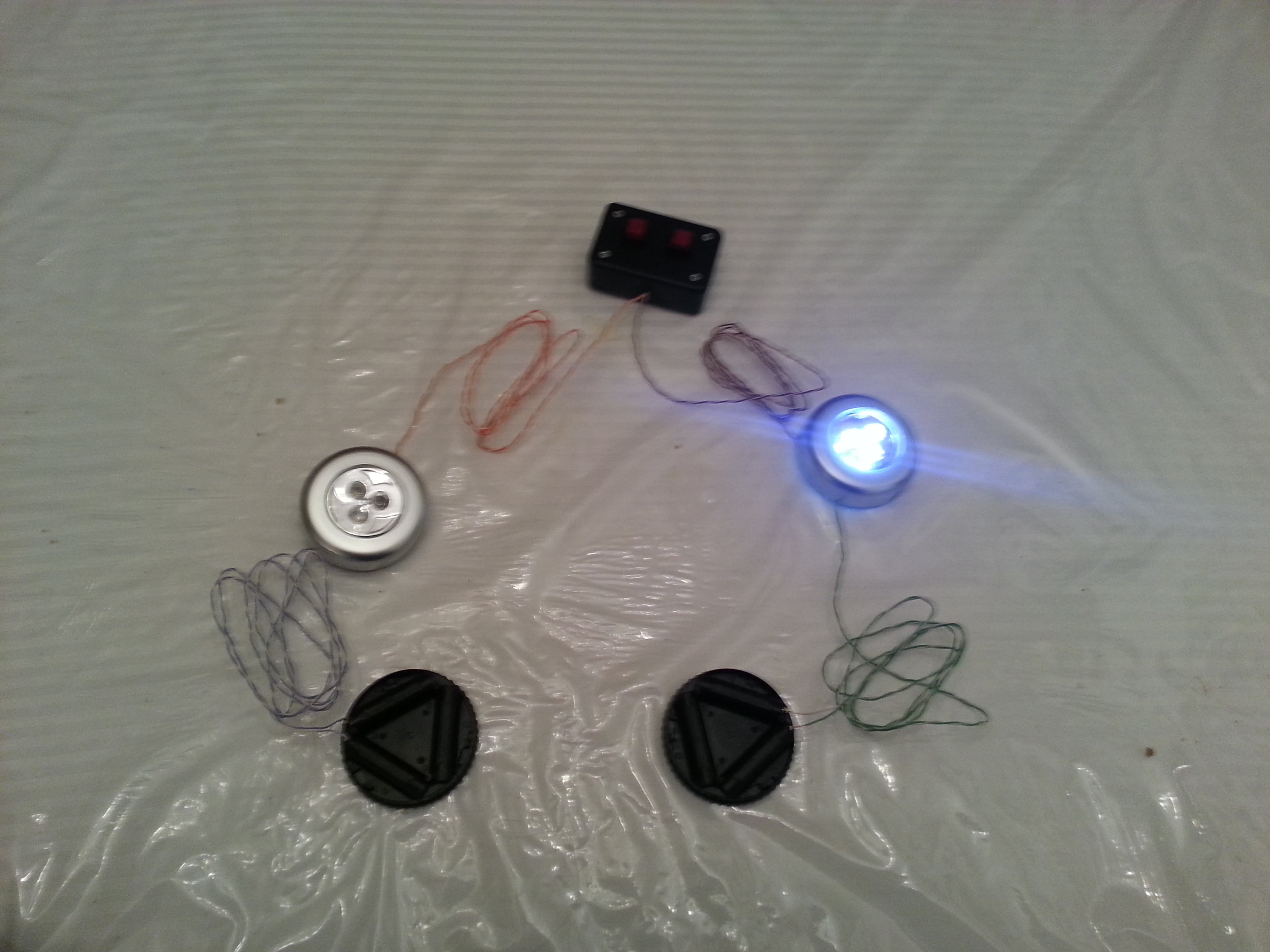

The problem, of course is that to turn those things on, you have to physically press the front on each of them.  That’s going to be awkward if you want to light up the eyes while you’re performing with the puppet.  “Hey,” I told Kay, “I can move the switch outside the case… heck, I can probably put it at the end of a long wire, so you can have the switches for both eyes next to each other.  And I could move the batteries to the end of a long wire, too, so you don’t have to have all that weight up in the eyes.”  Kay was skeptical, however, because she didn’t want me ruining the one pair of these lights that she had.  So I found another pair for $5 on sale at a hardware store and I took them apart.

The build seemed simple enough: there was a switch soldered to a circuit board that had the LEDs soldered on, and there were two leads from the circuit board to the battery housing, one of which had a resistor.  I could de-solder the switch and put it at the end of long wire, and I could do the same for the battery.  Easy-peasy.

So I set to work.  I grabbed about three feet from my spool of cat5 cable and split it open to reveal the four pairs of twisted wires.  I de-soldered the connection to the battery and wired it back in with one of the wire pairs from the cable.  I now was able to put the battery three feet away from the LEDs.  I then de-soldered the switch from the circuit board and soldered in one end of another pair of wires.  I then tried touching the bare ends of that wire together to close the circuit and make sure everything was working.

Nothing happened.

“Uh-oh,” I thought. “I’m not going to be able to do this by the seat of my pants.”

See, I’m a geek, but I don’t really grok electricity the way most geeks do.  There are equations for things, and I mostly ignore them and just do things by the seat of my pants because, for the most part, I can get things to work that way.  I don’t bother sitting down and crunching numbers because… well, that’s work.  And I hate work.  That’s why I mostly write computer code–coding isn’t work, it’s fun.

So, I started asking around for help. As luck would have it, one of my former coworkers Don came by the office this past week for a visit, and I chatted him up about it.  He did some quick addition on my whiteboard, and he gave me one crucial piece of advice: buy a multimeter.

So, on Friday, I grabbed a $35 multimeter from RadioShack. On Saturday, I took apart the other LED light and started testing voltages.  I tested at the two terminals on the battery pack. The multimeter read 4.77V. I tested where the two leads connected to the circuit board with the LEDs and switch. 4.75V.  Ok, good, I’ve got numbers to compare with.  I then tested the circuit I had soldered together at the battery pack. 4.75V.  Ok, that’s good. Then I tested at the circuit board? -4.75V. … … wait. NEGATIVE 4.75V?

A little voice in my head said, “They don’t call them Light Emitting Diodes for nothing, Pack.”

So I de-soldered where I’d connected the wires to the circuit board and re-connected them with the proper polarity.  VOILA!  It worked!

Emboldened by my success (and spurred by the fact that my ham-handed soldering had damaged one of the switches so it was no longer a push-on, push-off switch but appeared to now only function as a momentary (push on, release off) switch), I trotted off to RadioShack and grabbed two larger switches and a little plastic project case to house them in.

Another hour in my in-laws basement, and I was done!

2013-06-15 21.30.16 2013-06-15 21.30.23
2013-06-15 21.30.29 2013-06-15 21.30.34

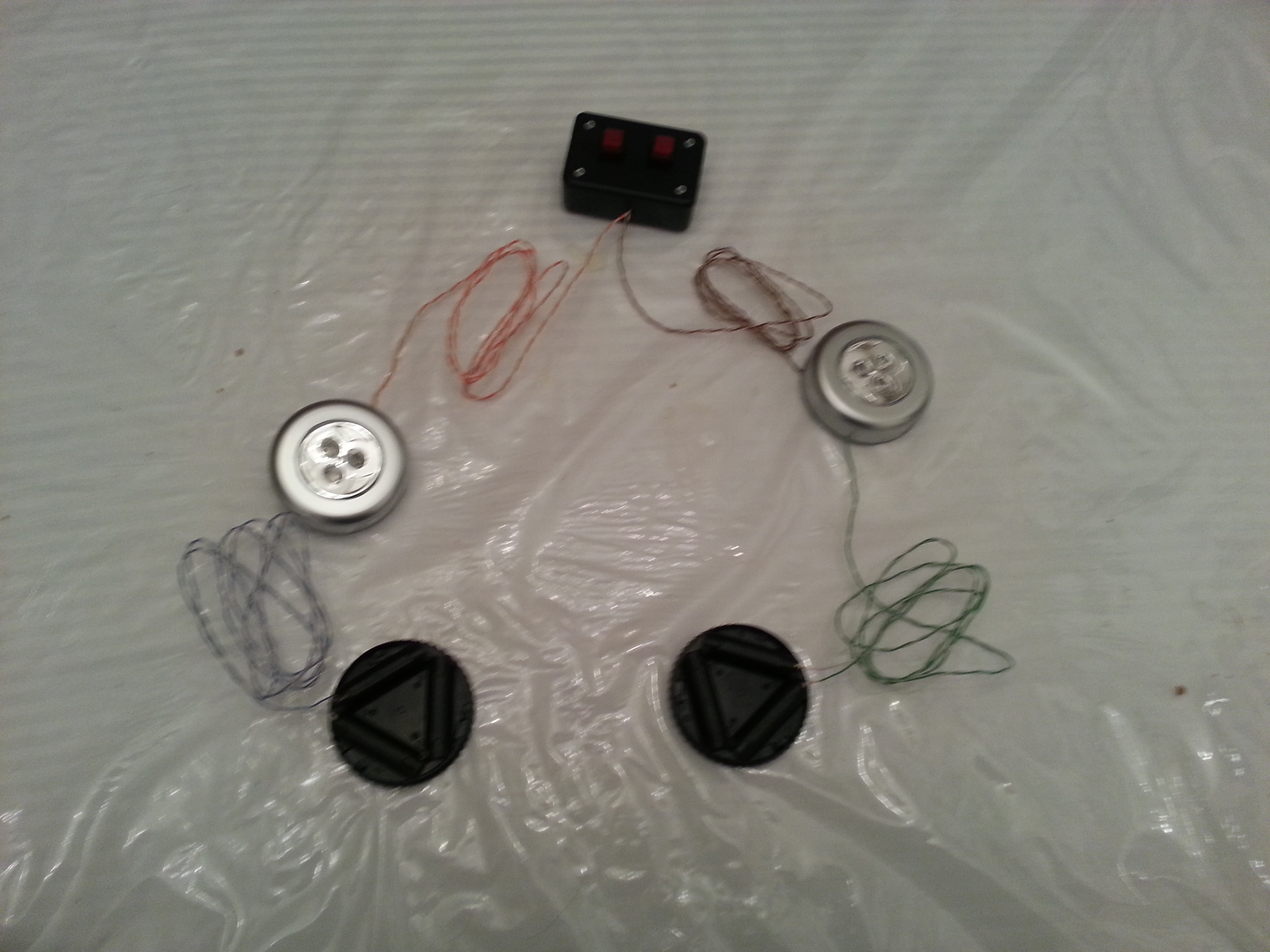

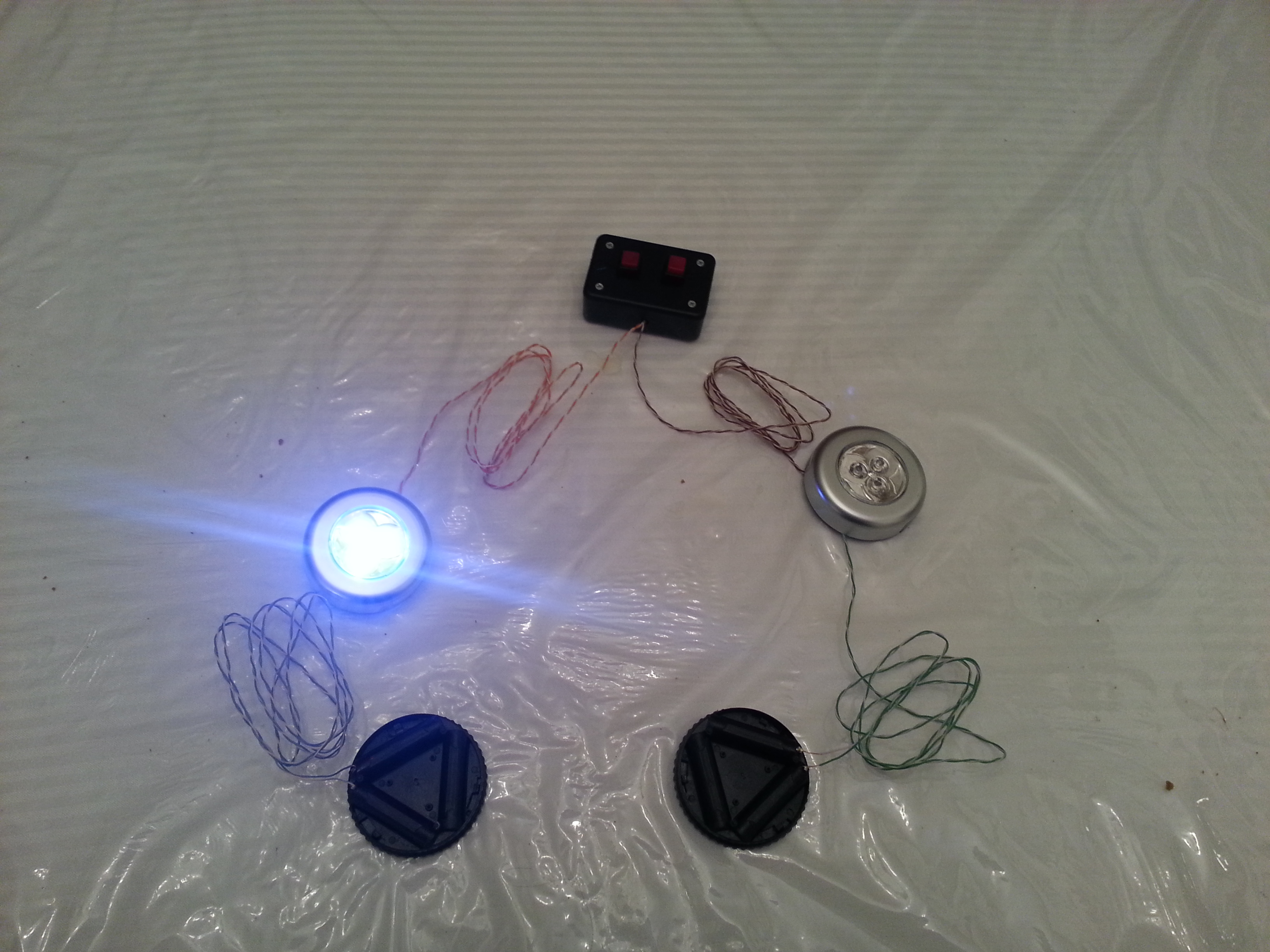

The switches are close enough together you can turn both lights on at the same time, but you can also choose to light up either light individually.  Now all we have to do is mount these in Dragon’s eyes and figure out where the best place to place the switches.
